PANASONIC AW-UE150KPJ PROFESIONAL PTZ CAMERA 4K 60P AR/VR STANDARD FEATURES :
SKU
PAN-AW-UE150KPJ
MFR#
AW-UE150AKPJ
$11,400.00
Availability:
Out of stock

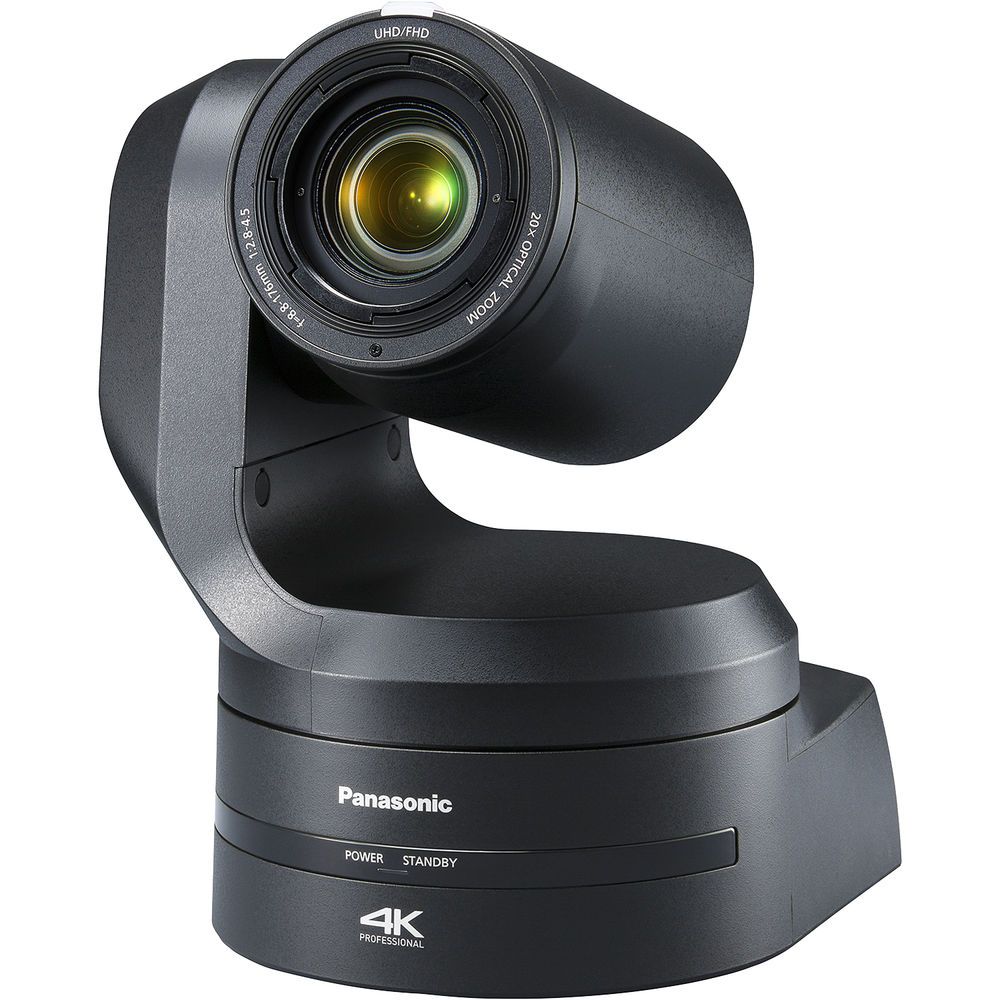

PANASONIC AW-UE150KPJ PROFESIONAL PTZ CAMERA 4K 60P AR/VR STANDARD FEATURES :
Bring UHD 4K quality video to your production with the black AW-UE150K UHD 4K 20x PTZ Camera from Panasonic. This pro PTZ camera outputs up to UHD 4K 60p over a variety of 4K connections including 12G-SDI, HDMI, optical fiber, and IP streaming. It features a large 1" type MOS sensor, a 20x optical zoom with a wide 75.1° angle-of-view, and PoE++ compatibility. With the v2.28 firmware upgrade, the AW-UE150K offers V-Log output, a UHD crop function in 720p, a preset on/off iris function, and more.
Key Features:
- 1"-Type MOS Sensor
- Up to UHD 4K 60p & HD Simultaneous Out
- 12G-SDI, HDMI, Fiber & IP Transmission
- V-Log Out & UHD Crop with v2.28 Update
- 20x Optical, 24x UHD & 32x HD iZoom
- HDR Mode with BT.2020 Support
- Wide 75.1° Horizontal Viewing Angle
- Up to 180°/Sec Pan/Tilt Speed
- Live Stream to Platforms via RTMP
- Stereo Mini-Jack Audio Mic/Line Input
Panasonic AW-UE150 Specs:
| Image Sensor |
1"-Type MOS
|
| Horizontal Resolution (TV Lines) |
1600 TV Lines
|
| Built-In ND Filter |
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
|
| Image Stabilization |
Optical in Integrated Lens
|
| Focus Control |
Autofocus
Manual Focus |
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1/24 Second
|
| Gain |
0 to 42 dB (Expanded)
|
| Precise Scan Rate Control |
Yes
|
| Sensitivity |
f/9 at 2000 lux
|
| Signal-to-Noise Ratio |
60 dB
|
| Minimum Illumination |
2 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
2000 to 15,000K
Presets: ATW, AWB |
| Focal Length |
8.8 to 176mm (35mm Equivalent: 24.5 to 490mm)
|
| Optical Zoom Ratio |
20x
|
| Max Digital Zoom |
32x ( in 1080p)
|
| Field of View |
Horizontal: 75.1 to 4°
Vertical: 46.7 to 2.3° Diagonal: 82.8 to 4.6° |
| Maximum Aperture |
f/2.8 to 4.5
|
| Minimum Focus Distance |
Wide: 3.9" / 9.9 cm
Telephoto: 39.6" / 100.6 cm |
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / Optical Fiber
3840 x 2160 at 24.00/25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080PsF at 23.98/25/29.97 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Audio Recording |
2-Channel 16-Bit 48 kHz AAC LC Audio
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264, H.265, MJPEG, NDI, RTMP, RTP, RTSP, TCP, UDP
3840 x 2160 at 23.98p, 25p, 29.97p, 59.94p, 60p 1920 x 1080 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p 1280 x 720 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p 640 x 360 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p 320 x 180 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p |
| Move Speed |
Pan: 0.08 to 180°/sec
Tilt: 0.08 to 180°/sec |
| Movement Range |
Pan: 350° (-175 to 175°)
Tilt: 120° (-30 to 210°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
RS-232
RS-422 |
| Video I/O |
1x HDMI 2.0 Output
1x BNC Loop Output 1x BNC (3G-SDI) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
|
| Other I/O |
1x BNC (Genlock) Input
1x RJ45 (RS-422) Control |
| PoE Support |
PoE++ 802.3bt
|
| Power I/O |
1x Proprietary (10.8 to 13.2VDC) Output
|
| Power Consumption |
Power Supply: 10.8 to 13.2 VDC at 4 A
PoE: 42 to 57 VDC at 1.2 A |
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 122°F / -20 to 50°C
|
| Operating Humidity |
20 to 90%
|
| Mounting |
4x M4 Female for Ceiling
|
| OS Compatibility |
Windows 7 to 11 (64-Bit Only)
macOS 10.11 to 10.13 |
| Certifications |
FCC Part 15 Class A
|
| Sound Level |
NC35
|
| Dimensions (W x H x D) |
8.39 x 10.51 x 8.62" / 21.3 x 26.7 x 21.9 cm (Without Protrusions, Bracket)
|
| Weight |
9.26 lb / 4.2 kg
|
