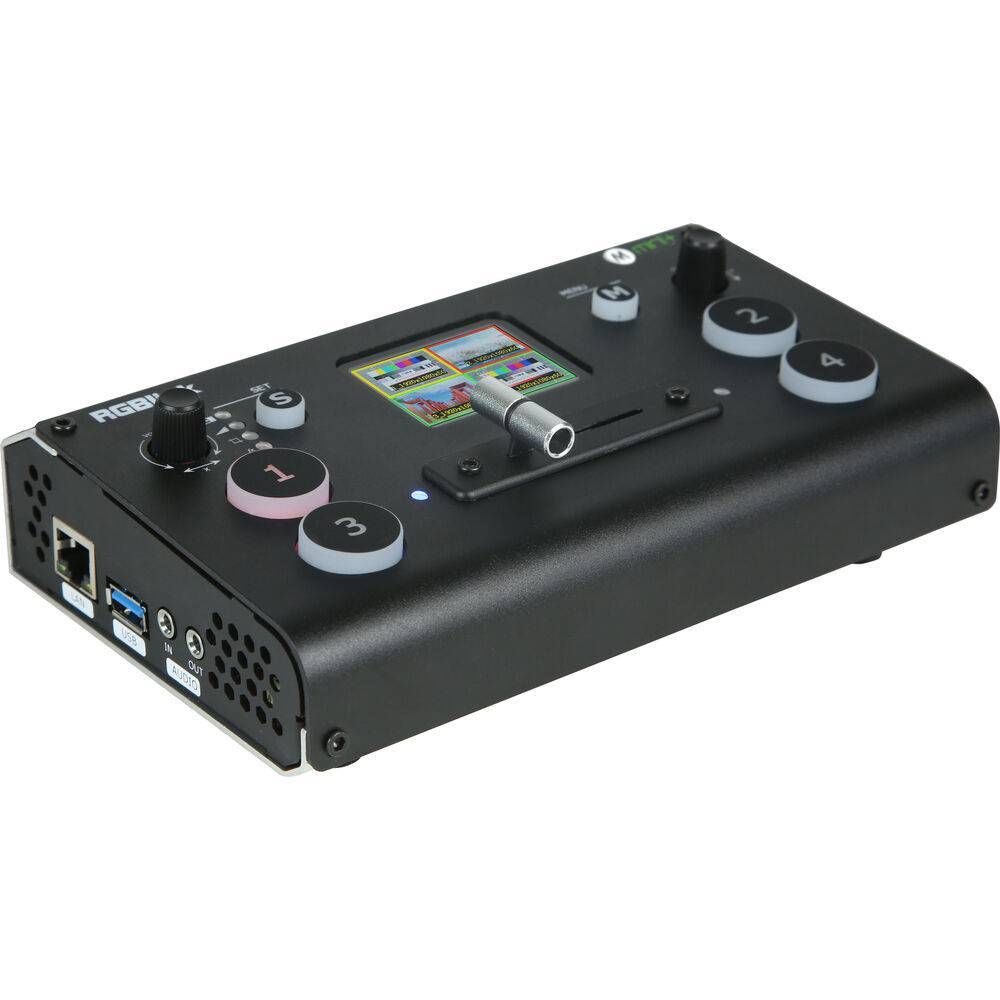

main product photo
Loading...
RGBLINK MINI-PRO PN 230-0003-02 2 DUAL CHANNEL STREAMING SWITCHER 4K

RGBLINK MINI-PRO PN 230-0003-02 2 DUAL CHANNEL STREAMING SWITCHER 4K

RGBLINK BUNDLE 2 COMPLETE STREAMING KIT 20X VERSION INCLUDES 2 PTZ 20X 1 TAO 1 PRO AND MINI-PRO -CASE AND SUPPORT

RGBLINK BUNDLE 2 COMPLETE STREAMING KIT 20X VERSION INCLUDES 2 PTZ 20X 1 TAO 1 PRO AND MINI-PRO -CASE AND SUPPORT

RGBLINK MINI+ PN 230-0001-02-0 VIDEO SWITCHER WITH 4 X HDMI INPUTS ( PTZ/LOGO/CHROMA KEY )

RGBLINK
SKU
RGB-MINI+
MFR#
230-0001-02-0
was $499.00 Special Price $399.00
Availability: In stock
RGBLINK MINI+ PN 230-0001-02-0 VIDEO SWITCHER WITH 4 X HDMI INPUTS ( PTZ/LOGO/CHROMA KEY )
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options
Live-switch, control, and stream up to four HDMI video sources such as PTZ cameras with transitions and effects using the mini+ Video Switcher from RGBlink. The compact mini+ video switcher can switch up to four HDMI inputs, output program and preview video via one HDMI port, and stream up to 1080p60 H.265 video via USB with third-party streaming software. The advantage of the mini+ over the mini model is that the mini+ allows you to control PTZ cameras, and it supports the use of chroma keying and the addition of graphics logos to your video feed.
Your Rating
Key Features:
  • Compact HDMI Video Switcher
  • 4 x HDMI Inputs, 1 x HDMI Output
  • Stream up to 1080p60 Video via USB
  • PTZ Control, Chroma Key, Logo, PiP
  • Audio Insertion and Extraction
  • Transitions, Auto-Cut, Manual Switching
  • Live Input Program Preview on Display
  • Multiview and PGM HDMI Output
  • H.265 Compression Support
  • LAN Control via Software

RGBlink Mini+ Specs

Effect Types 1 x Graphic, Transition, Chroma Key
Processing
Switching Type Pushbutton, Software, T-Bar
Processing Resolution 1080p
Input
Number of Video Input Sources 4
Video Input Connectors 4 x HDMI (HDMI 1.3) Female
Input Video Format HDMI
1080p at 23.98/24/30/50/60 fps
1080i 50 fps
720p 50/60 fps
WUXGA (1920 x 1200) 60 fps
WUXGA+ (1680 x 1050) 60 fps
UXGA (1600 x 1200) 60 fps
WXGA+ (1440 x 900) 60 fps
FWXGA (1366 x 768) 60 fps
SXVGA (1280 x 1024) 60 fps
WXGA (1280 x 800) 60 fps
XGA (1024 x 768) 60 fps
Audio Input Connectors 1 x 1/8" / 3.5 mm TRS Stereo Analog Female
Embedded Audio Input HDMI
Output
Video Output Channels 2
Video Output Connectors 1 x HDMI (HDMI 1.3) Female (Program)
Output Video Format HDMI
1080p at 60 fps
720p 60 fps
UXGA (1600 x 1200) 60 fps
FWXGA (1366 x 768) 60 fps
SXGA (1280 x 1024) 60 fps
XGA (1024 x 768) 60 fps
USB Type-A
1080p at 60 fps
FWXGA (1366 x 768) 60 fps
SXGA (1280 x 1024) 60 fps
XGA (1024 x 768) 60 fps
Audio Output Connectors 1 x 1/8" / 3.5 mm TRS Stereo Analog Female
Output Audio Format Analog
Embedded Audio Output HDMI
USB Type-A
Multiview Output 4-Way Multiview viaHDMI
Connectivity
Other I/O 1 x USB Type-A Output
1 x RJ45 Control, LAN Input/Output
Power Connector 1 x Barrel (12 VDC at 1.5 A) Input
Power Consumption Device: 18 W
