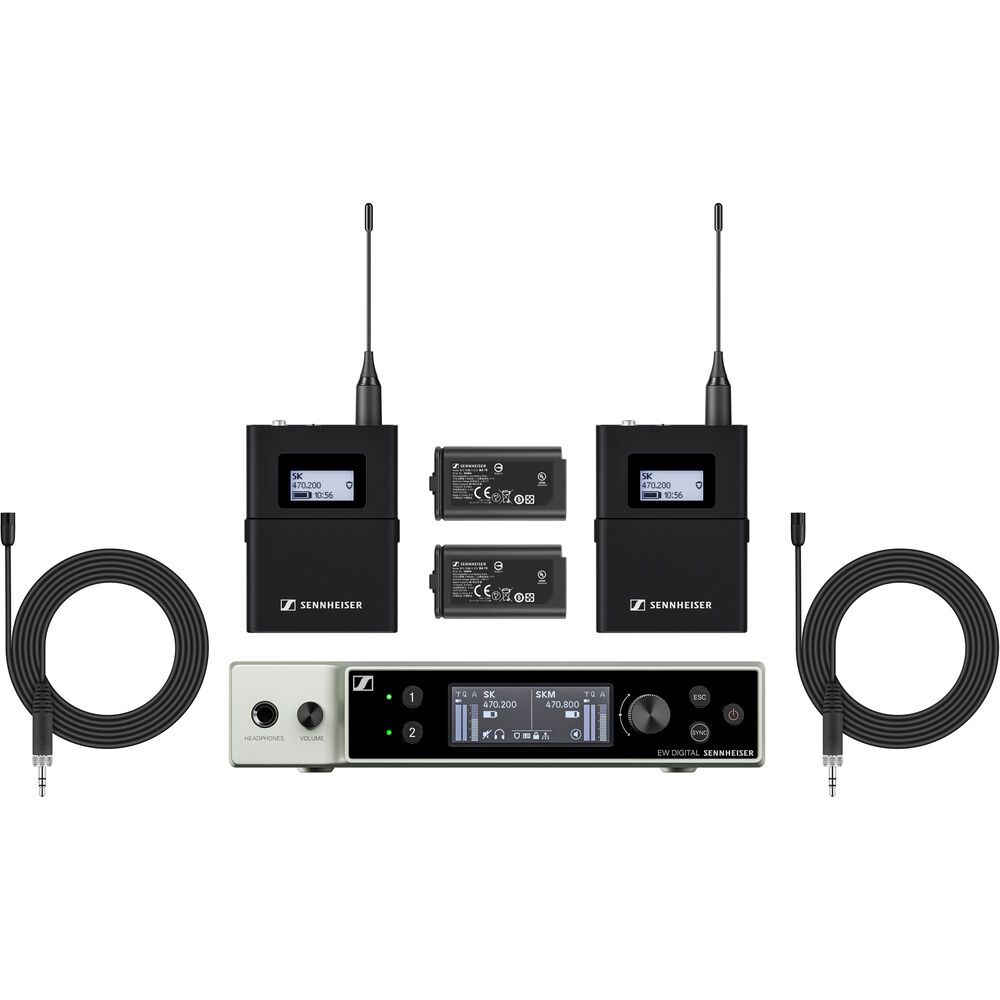

Rigorously engineered to meet the needs of demanding professionals working in business and educational settings, houses of worship, or on stage, the Sennheiser EW-DX MKE 2 SET is a dual-channel digital UHF wireless system with an impressive feature set designed to simplify your workflow while delivering uncompromising audio quality. This configuration includes a dual-channel, 1/2-rack receiver and two bodypack transmitters with subminiature MKE 2 omnidirectional lavalier mics.
With a remarkable 134 dB dynamic range on the transmitters, the mics can handle just about any input level you throw at them. The wide 87 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode work to provide rock-solid wireless performance and massive channel counts, even in challenging RF environments. Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Sennheiser's Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups. The EW-DX is backward-compatible with EW-D components.
Features:
Specifications:
| System | |
| Wireless Technology | Digital UHF |
| Diversity | Yes |
| RF Frequency Band | R1-9: 520 to 607.8 MHz |
| Number of RF Channels | 3480 |
| Max Operating Range | 328.1' / 100 m (Line of Sight) |
| Max Transmitters/Band | 293 |
| Dynamic Range | 134 dB |
| Latency | 1.9 ms |
| Encryption | AES 256 |
| Built-In Recorder | No |
| Mobile App Compatibility | Yes: Android & iOS |
| Receiver | |
| Receiver Type | 1x Tabletop/Rack-Mountable |
| Mounting Options | Rackmount (1 U Half-Rack, Hardware Included) |
| Antenna | 2x Removable BNC External (Rear-Mount) |
| Number of Audio Channels | 2 |
| Audio I/O | 2x XLR 3-Pin Balanced Output2x 1/4" TS Unbalanced Output1x 1/4" TRS Headphone Output |
| Network I/O | 1x RJ45 |
| Word Clock I/O | No |
| USB/Lightning Connectivity | No |
| Frequency Response | 20 Hz to 20 kHz ±3 dB |
| Display | OLED |
| Power Requirements | AC/DC Power Adapter, PoE |
| Transmitters | |
| Included Transmitters | 2x Bodypack |
| RF Output Power | 10 mW |
| Antenna | Fixed External |
| Input Level | Microphone / Line / Instrument |
| Audio I/O | 1x 1/8" / 3.5 mm Locking TRS Female Input |
| Bias/Plug-In Power | 2 to 4.35 V Bias |
| Phantom Power | Not Supported |
| Muting | Mute Switch |
| Auto-Level/Gain | No |
| Frequency Response | 20 Hz to 20 kHz -3 dB |
| Sync Method | Bluetooth |
| Display | Single-LED Indicators Only |
| Microphones | |
| Type | 2x Lavalier |
| Polar Pattern | Omnidirectional |
| Output Connector | 1x 1/8" / 3.5 mm Locking TRS Male |
| Cable Length | 5.2' / 1.6 m |
| Color | Black |
| Power | |
| Transmitter Battery Type | 2x AA (Included) or 1x Sennheiser Battery Pack (Not Included) |
| Transmitter Battery Life | 8 Hours (Alkaline), 12 Hours (Sennheiser Battery Pack) |
| AC/DC Power Adapter | 11 to 13 VDC (Included) |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
