SENNHEISER EW-D EM (Q1-6) | 508800 | PRO DIGITAL 19 ½” SINGLE CHANNEL RECEIVER. INCLUDES (1) GA4 RACKMOUNT, FREQUENCY RANGE: (470 - 526 MHZ) 0526
SKU
SEN-EW-D-EM (Q1-6)
MFR#
508800
was
$379.00
Special Price
$329.00
Availability:
Out of stock
SENNHEISER EW-D EM (Q1-6) | 508800 | PRO DIGITAL 19 ½” SINGLE CHANNEL RECEIVER. INCLUDES (1) GA4 RACKMOUNT, FREQUENCY RANGE: (470 - 526 MHZ)

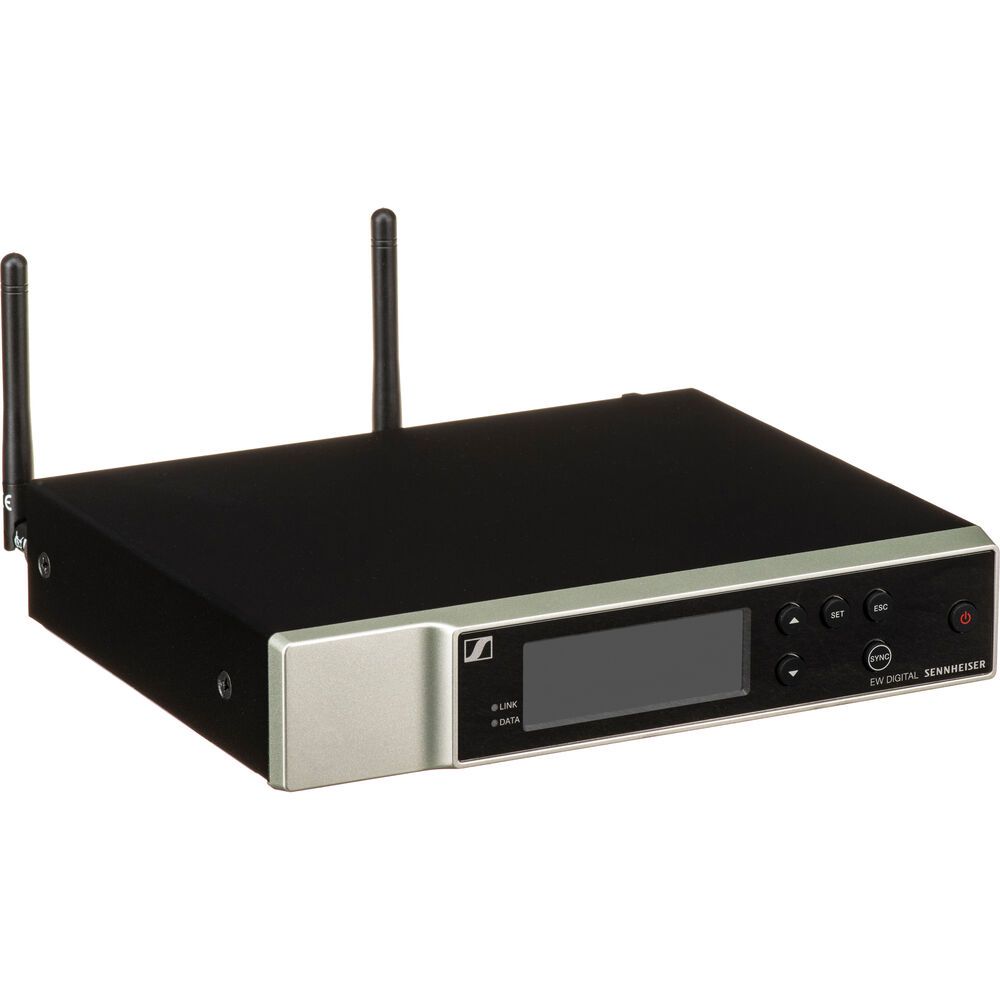

The Sennheiser EW-D EM is a half-rack, single-channel wireless receiver housed in a rugged, all-metal chassis built to withstand the rigors of professional use. It can either sit on a tabletop or be rackmounted for portable rigs and permanent A/V installs.
The EW-D EM is compatible with the EW-D SK bodypack and EW-D SKM-S handheld transmitters. Easy to set up and simple to operate with a bright OLED display and automated Bluetooth App for your phone, it offers pristine 24-bit digital audio and reliable wireless performance to presenters and lecturers working in business and educational settings, clergy in houses of worship, and live performers in theaters or on medium-sized musical stages.
Features:
- For Medium-Sized Venue & Conference Room
- Pro Features with Fast & Easy Set Up
- Single-Channel, 1/2 Rackspace
- Intelligent Diversity Reception
- 2240 Frequencies on Equidistant Grid
- 134 dB of Dynamic Range, 24-Bit Audio
- Set Up/Operate from Phone via Bluetooth
- 8-Hour AA /12-Hour Rechargeable Battery
- Expandable to 90 Mic Channels/330' Range
Specifications:
| System | |
| Wireless Technology | Digital UHF |
| Diversity | Yes |
| RF Frequency Band | 470 to 526 MHz |
| Number of RF Channels | 2240 |
| Max Operating Range | 328.1' / 100 m (Line of Sight) |
| Max Transmitters/Band | 90 |
| Dynamic Range | 134 dB |
| Latency | 1.9 ms |
| Encryption | No |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | Yes (Android & iOS) |
| App Name | Smart Assist |
| App Functionality | Adjust Settings, Remote Control, Setup |
| Receiver | |
| Receiver Type | 1x Tabletop/Rack-Mountable |
| Mounting Options | Rackmount (1 U Half-Rack, Hardware Included) |
| Antenna | 2x Removable |
| Number of Audio Channels | 1 |
| Audio I/O | 1x XLR 3-Pin Balanced Output1x 1/4" TRS Balanced/Unbalanced Output |
| Word Clock I/O | No |
| Gain Range | -3 to +42 dB (3 dB Steps) |
| Frequency Response | 20 Hz to 20 kHz ±3 dB |
| Display | LCD (Non-Backlit) |
| Power Requirements | AC/DC Power Adapter |
| Power | |
| AC/DC Power Adapter | 11 to 13 VDC at 300 mA (Included) |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Physical | |
| Environmental Resistance | No |
| Dimensions | 8.3 x 7.4 x 1.7" / 212 x 189 x 44 mm |
| Weight | 35.3 oz / 1000 g (without Antennas) |
