SENNHEISER EW-D SK (Q1-6) | 508780 | PRO DIGITAL BODYPACK TRANSMITTER WITH 1/8" AUDIO INPUT SOCKET (EW CONNECTOR), FREQUENCY RANGE: (470 - 526 MHZ) 0526

SKU
SEN-EW-D-SK(Q1-6)
MFR#
508780
was $379.00 Special Price $329.00
Availability: Out of stock
SENNHEISER EW-D SK (Q1-6) | 508780 | PRO DIGITAL BODYPACK TRANSMITTER WITH 1/8" AUDIO INPUT SOCKET (EW CONNECTOR), FREQUENCY RANGE: (470 - 526 MHZ)

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

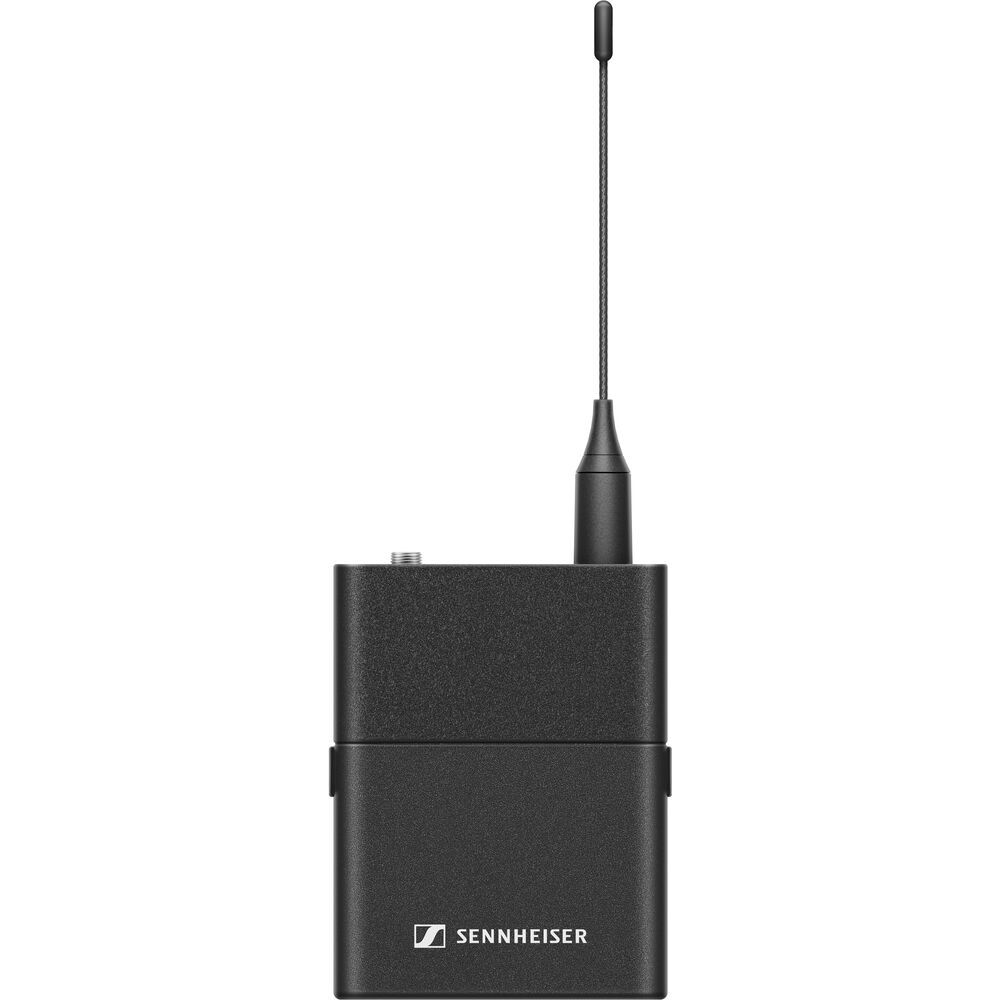

The Sennheiser EW-D SK is a digital bodypack wireless transmitter compatible with EW-D wireless receivers. Lightweight and comfortable for performers and presenters to wear, the bodypack features a rugged, all-metal housing well suited for daily use on stage.

The EW-D SK is equipped with a locking 3.5mm connector that accommodates the compatible lavalier or headset microphone of your choice, or an adapter cable for guitar and bass. With a remarkable 134 dB dynamic range on its input, it can handle a wide variety of sound sources, including loud vocalists and performers, connections to musical instruments, and even line-level signals from mixers, all without requiring any gain adjustment.

The unit features a mute button that can be locked out and overridden from the receiver or a mobile device during a performance. It quickly pairs with the receiver via Bluetooth at a distance up to 120', at the press of a button. What's more, the EW-D SK utilizes an equidistant tuning grid that equally spaces 2240 frequencies across its wide 56 MHz bandwidth to prevent disruptive intermodulation issues that occur when multiple transmitters operate in confined spaces.

Your Rating

Features:

  • For EW-D Digital Wireless Receivers
  • Use with Lav/Headset Mic or Instrument
  • 134 dB of Dynamic Range, 24-Bit Audio
  • 2240 Frequencies on Equidistant Grid
  • Locking 3.5mm Connector, Mute Switch
  • Set Up/Operate from Receiver or Phone
  • 8-Hour AA /12-Hour Rechargeable Battery

Specifications:

System
Wireless Technology Digital UHF / Bluetooth 5.1
RF Frequency Band 470 to 526 MHz
Number of RF Channels 2240
Max Operating Range 328.1' / 100 m (Line of Sight)
Latency 1.9 ms
Encryption No
Built-In Recorder No
Timecode Support No
Mobile App Compatible No
Transmitters
Included Transmitters 1x Bodypack
RF Output Power 10 mW
Antenna Fixed Flexible Whip
Input Level Microphone / Instrument / Line
Audio I/O 1x 1/8" / 3.5 mm Locking TRS Female Input
Bias/Plug-In Power Unspecified by Manufacturer
Phantom Power No Phantom Support
USB I/O No
Muting Mute Switch
Auto-Level/Gain No
Frequency Response 20 Hz to 20 kHz
Sync Method Bluetooth
Display Single-LED Indicators Only
Power
Transmitter Battery Type 2x AA (Included)1x Sennheiser Battery Pack (Not Included)
Transmitter Battery Life 8 Hours (Alkaline)12 Hours (Sennheiser Battery Pack)
AC/DC Power Adapter No
Physical
Environmental Resistance No
Housing Metal
Dimensions 2.5 x 3.1 x 0.8" / 63 x 80 x 20 mm (without Antennas)
Weight 4.2 oz / 120 g (without Batteries)
