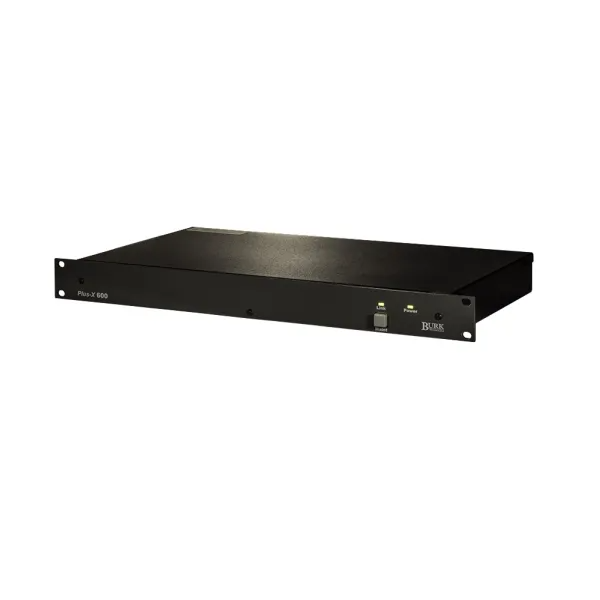

BURK PLUS-X600 ETHERNET I/O INTERFACE FOR ARC PLUS PROVIDES (16) INPUTS,
SKU
BUR-PLUS-X-600
MFR#
PLUS-X 600
$2,010.00
Availability:
Out of stock
BURK PLUS-X600 ETHERNET I/O INTERFACE FOR ARC PLUS PROVIDES (16) INPUTS,
Maximize Efficiency with Plus-X 600
Introducing the Plus-X 600, a versatile I/O solution engineered for a broad spectrum of applications. Its sleek 1RU form factor delivers maximum functionality in minimal space, offering a cost-effective blend of channels tailored for efficiency and scalability. The Plus-X 600 embodies the perfect balance between performance and space utilization, making it an ideal choice for facilities looking to enhance their control capabilities without compromising on space.
Simplified Installation Process
The Plus-X 600 boasts straightforward installation thanks to its IP connectivity with the ARC Plus. Direct connections via included Phoenix-type connectors streamline the setup process, eliminating the need for external breakout panels. This ease of installation ensures a seamless integration into your existing system, allowing for immediate enhancement of your operational capabilities.
Features:
- 16 Status Inputs for Comprehensive Monitoring
- 8 Meter Inputs for Precise Measurement
- 6 Raise/Lower Relay Pairs, Usable as 12 Individual Relays for Flexible Control
- Ethernet Link to ARC Plus for Seamless Integration
Specifications:
| Dimensions | 1.75" (4.45 cm) H x 19" (48.26 cm) W x 12" (30.48 cm) D |
| Operating Temperature | 0° to 40° C |
| Power Requirements | 100 to 240VAC, 47–63Hz, 1A Power entry module with standard, grounded power cord supplied 1A fuse protection |
| Connectivity | Ethernet connection to ARC Plus |
| Channel Capacity | 16 status, 8 metering, 6 command channels |
| Metering Input Range | > 99.75% accuracy, full scale |
| Status Input Range | > 0 to +28VDC or switch closure |
| Output Types | C, NO, NC relay outputs Momentary or latching 5A, 240VAC |
