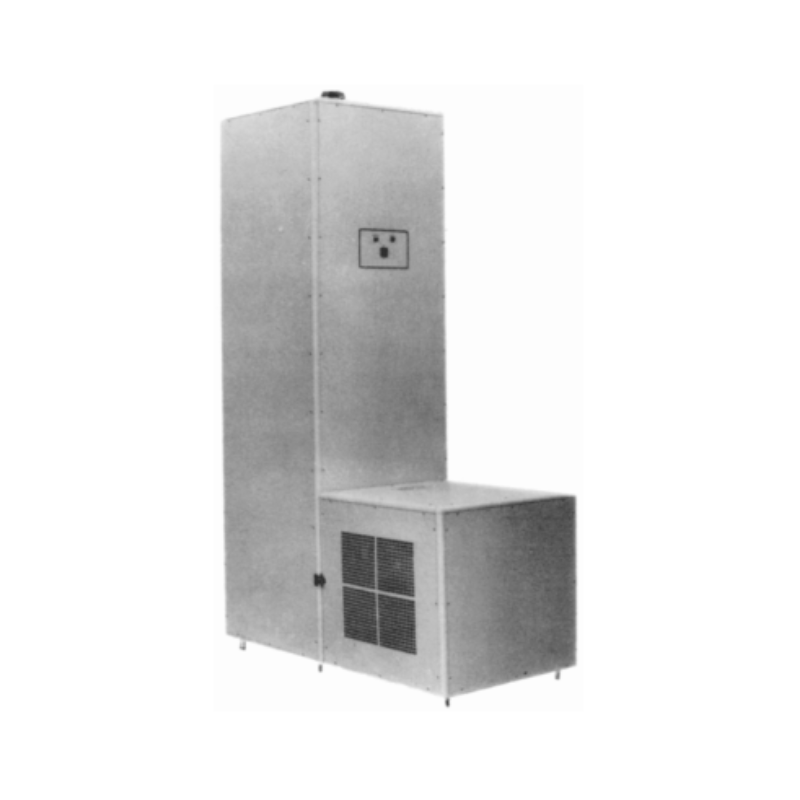

COAXIAL DYNAMICS 86750-1 50 KW DUMMY LOAD FORCED AIR COOLED 3-1/8 " EIA FLANGE
SKU
CD86750-1
MFR#
86750-1
$0.00
Availability:
Out of stock
COAXIAL DYNAMICS 86750-1 50 KW DUMMY LOAD FORCED AIR COOLED 3-1/8 " EIA FLANGE
The 86700 Series Forced Air Cooled RF Coaxial Loads are capable of dissipating up to 75 kW of CW RF power from DC Hz to 240 MHz with a VSWR of 1.15:1 or less. With this low reflection coefficient the loads are very useful for tuning transmitters. They can be used to terminate AM, FM, TV, CW or Pulse transmissions in 50-Ohm coaxial transmission line systems. When used in conjunction with Coaxial Dynamics Directional RF Insertion Wattmeters, these loads can accurately measure power up to 75 kW.
Your confidence in the quality and dependability of the 86700 Series Forced Air Cooled RF Coaxial Loads is assured with the Coaxial Dynamics Two Year Limited Warranty.
Features:
- Extremely Quiet Operation
- Easy Air Ducting
- Transmitter Interlocks
- Standby Operation
- Alarm Output
- Two Year Limited Warranty
Specifications:
| Category | Model 86750 & 86751 |
|---|---|
| Power Rating (CW) | 50 kW |
| Impedance | 50 Ohms Nominal |
| Frequency Range | DC to 240 MHz |
| VSWR | 1.10 : 1 to 110 MHz 1.15 : 1 to 240 MHz |
| Input Connector | 3-1/8" or 6-1/8" |
| AC Power Required | 115 VAC, 60 Hz, 12A or 230 VAC, 60 Hz, 6A (50 Hz available) |
| Nominal Dimensions (Including Connector) | 24" × 48" × 84" (61 cm × 122 cm × 213 cm) |
| Nominal Weight | 290 lbs (132 kg) |
| Finish | Textured Beige |
