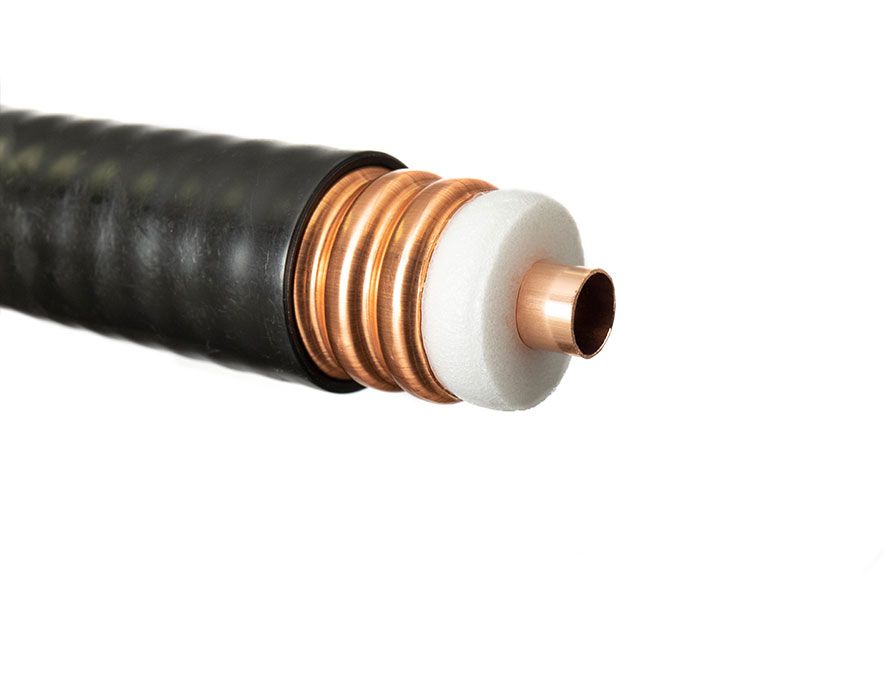

HELIAX BDCC78-5-50A 7/8 " COAXIAL CABLE CORRUGATED COPPER WITH BLACK

SKU

BDCC78-5-50A

MFR#

EC5-50-A

$6.56

Availability: In stock

HELIAX BDCC78-5-50A 7/8 " COAXIAL CABLE CORRUGATED COPPER WITH BLACK

HELIAX BDCC78-5-50A 7/8 " COAXIAL CABLE CORRUGATED COPPER WITH BLACK

Your Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

Specifications:

Inner Conductor	Material: Smooth Copper TubeDiameter: 9.25 mm (0.36 in)
Dielectric	Material: Gas-Injected Cellular PolyethyleneDiameter: 23.5 mm (0.93 in)
Outer Conductor	Material: Corrugated Copper TubeDiameter: 25 mm (0.98 in)
Outer Sheath	Thickness: 1.4 mm (0.06 in)Diameter: 27.8 mm (1.09 in)
Minimum Bending Radius	Single Bend: 10 cm (3.9 in)15 Repeated Bends: 25 cm (9.8 in)
Maximum Pulling Strength	130 daN (292 lbf)
Temperature Range	Storage: -70 to +85°C (-94 to +185°F)Installation: -40 to +60°C (-40 to +140°F)Operation: -55 to +85°C (-67 to +185°F)
Max. Length per Hoisting Grip	72 cm (28.3 in)
Maximum Hanger Spacing	1.2 m (3.9 ft)
Flat Plate Crush Resistance	3.0 kg/mm (171 lb/in)
Bending Moment	10.3 Nm (7.3 ft·lb)
Approximate Weight	430 kg/km (0.291 lb/ft) / 480 kg/km (0.325 lb/ft)
VSWR Characteristics
VSWRmax 600 - 1000 MHz	≤ 1.15
VSWRmax 1700 - 2300 MHz	≤ 1.15
VSWRmax 2500 - 2700 MHz	≤ 1.15
