HELIAX BDCC12-4-50A 1/2 " FOAM DIELECTRIC COAXIAL CABLE LOW LOSS HIGH PERFORMANCE
SKU
BDCC12-4-50
MFR#
EC4-50
$4.62
Availability:
In stock

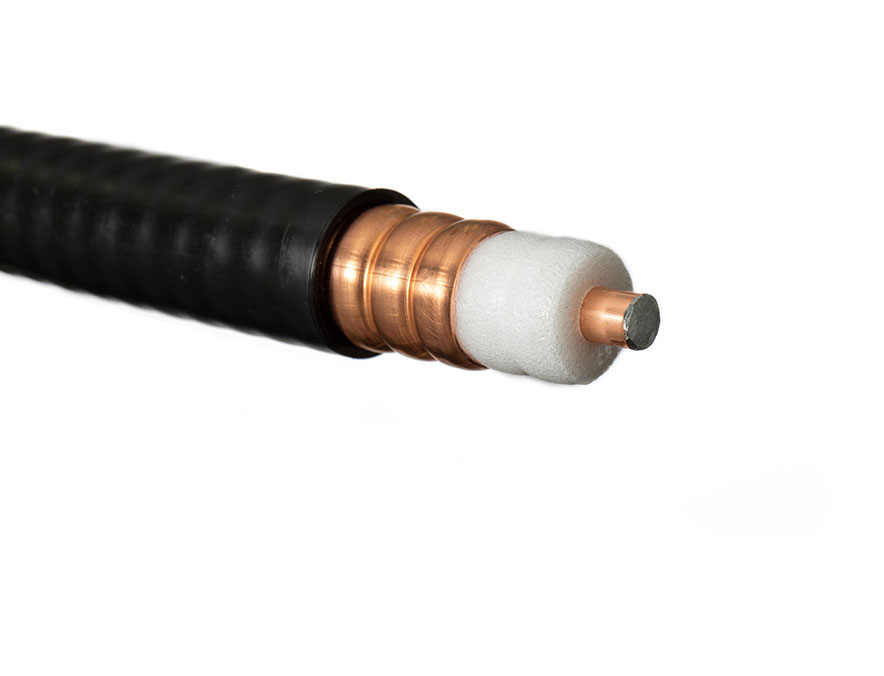

HELIAX EC4-50 1/2 " FOAM DIELECTRIC COAXIAL CABLE LOW LOSS HIGH PERFORMANCE
The EC4-50 is a 1/2-inch coaxial cable manufactured by Eupen. It's a 50 Ohm coaxial cable, meaning it's designed for applications that require a specific impedance to match the characteristics of the electronic circuit it is connected to. The "Heliax" part of the name refers to the type of cable structure, which is a flexible foam-insulated coaxial cable.
Features:
- EC4-50: Indicates the cable size, with EC4 referring to the 1/2-inch diameter and -50 indicating a 50 Ohm impedance.
- Heliax: A type of flexible foam-insulated coaxial cable.
Specifications:
| Inner Conductor | Material: Copper Clad Aluminium WireDiameter: 4.8 mm (0.19 in) |
| Dielectric | Material: Gas-Injected Cellular PolyethyleneDiameter: 12.4 mm (0.49 in) |
| Outer Conductor | Material: Corrugated Copper TubeDiameter: 13.8 mm (0.54 in) |
| Outer Sheath | Thickness: 1.1 mm (0.04 in)Diameter: 16.0 mm (0.63 in) |
| Minimum Bending Radius | Single Bend: 7 cm (2.8 in)15 Repeated Bends: 12 cm (4.7 in) |
| Maximum Pulling Strength | 94 daN (211 lbf) |
| Temperature Range | Storage: -70 to +85°C (-94 to +185°F)Installation: -40 to +60°C (-40 to +140°F)Operation: -55 to +85°C (-67 to +185°F) |
| Max. Length per Hoisting Grip | 70 cm (27.6 in) |
| Maximum Hanger Spacing | 1 m (3.3 ft) |
| Flat Plate Crush Resistance | 1.5 kg/mm (87 lb/in) |
| Bending Moment | 2.34 Nm (2.5 ft·lb) |
| Approximate Weight | 225 kg/km (0.152 lb/ft) |
| VSWRmax 600 - 1000 MHz | ≤ 1.15 |
| VSWRmax 1700 - 2700 MHz | ≤ 1.15 |
| VSWRmax 3400 - 4200 MHz | ≤ 1.15 |
| VSWRmax 5150 - 5925 MHz | ≤ 1.25 |
