SOLIDYNE 542APC-AoIP DIGITAL UNIVERSAL DSP AUDIO PROCESSOR WITH AoIP AUDIO OVER IP OPTION 5 BANDS + RDS CODER + FM MODULATION MONITOR & ANALYZER EXPANDER, GATED AGC, SUBSONIC FILTER, PHASE SCRAMBLER,

SOLIDYNE 542APC-AoIP DIGITAL UNIVERSAL DSP AUDIO PROCESSOR WITH AoIP AUDIO OVER IP OPTION 5 BANDS + RDS CODER + FM MODULATION MONITOR & ANALYZER EXPANDER, GATED AGC, SUBSONIC FILTER, PHASE SCRAMBLER,

SYES PCM 3 EXCITER VHF -10/+10DBM ATSC-ISDBT 90-264 VAC CODE 51790001

SYES PCM 3 EXCITER VHF -10/+10DBM ATSC-ISDBT 90-264 VAC CODE 51790001

SYES PCM 10 UHF TV TRANSMITTER 10 W COFDM-, 12 W ATSC, 20Wps MULTI-STANDARD ATSC - ATSC3.O, ISDB-T, DTMB, DVB-T/T2, ANALOG. 1RU CODE 51790002

Syes
SKU
PCM10U
$10,300.00
Availability: In stock
SYES PCM 10 UHF TV TRANSMITTER 10 W COFDM-, 12 W ATSC, 20Wps MULTI-STANDARD ATSC - ATSC3.O, ISDB-T, DTMB, DVB-T/T2, ANALOG. 1RU CODE 51790002
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

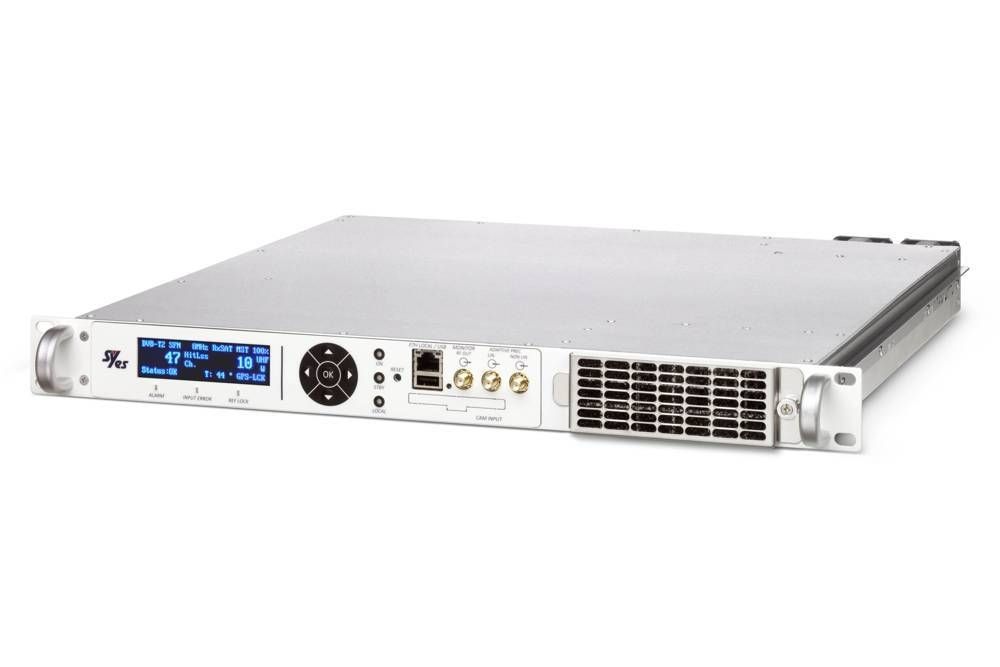

The PCM 10 UHF is the air cooled UHF TV Compact Transmitter from PCM line. 10 Wrms COFDM, 12 Wrms ATSC and 20 W p.s. Low Consumption, Compact and Easy to maintain, with a clear and intuitive design, it is Syes next generation of air cooled transmitters, available in band I, Ill and IV-V. The PCM family is designed to be the most efficient, robust and high performance amplifiers in the DTV era.

Your Rating

Specification:

  • Multistandard: ATSC (including ATSC3.O), ISDB-T, DTMB, DVB-T/T2, Analog.
  • 2x ASI with Hitless switch, 2x IP Ethernet, A/V for analog broadcasting.
  • The most advanced manual, automatic and adaptive linear and nonlinear pre-corrector.
  • Fully frequency agile without need for any tuning or trimming.
  • ON Board GNSS receiver (GPS, GLONASS, BEIDU, GALILEO).
  • USB input to fast save/load configurations.
  • Highest performances in terms of MER, BER and shoulders.
  • Nr. 2 Independent temperature controlled low-noise fans.
  • Use of tools is reduced almost to zero including pallets replacement.
  • Remote Control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts.
