SYES PCM 3 EXCITER VHF -10/+10DBM ATSC-ISDBT 90-264 VAC CODE 51790001
SKU
PCM3-EXCITER
$9,500.00
Availability:
In stock

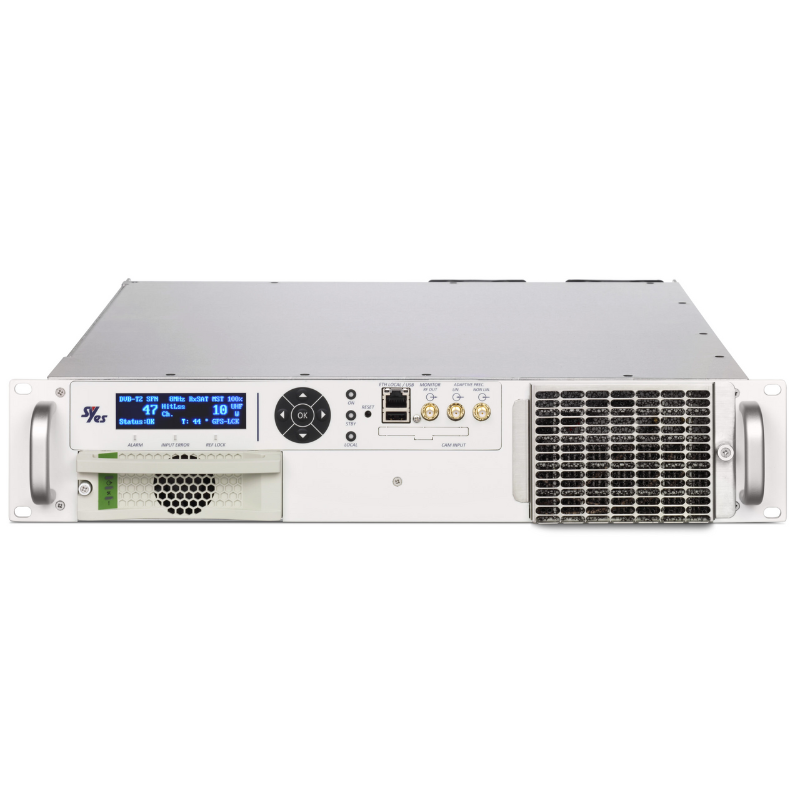

SYES PCM 3 EXCITER VHF -10/+10DBM ATSC-ISDBT 90-264 VAC CODE 51790001
The PCM 250 VHF is the air cooled TV Compact Transmitter from PCM line. 200 Wrms COFDM, 250 Wrms ATSC and 350 W p.s., 250W DAB. Low Consumption, Compact and Easy to maintain, with a clear and intuitive design, it is Syes next generation of air cooled transmitters, available in band I, III and IV-V. The PCM family is designed to be the most efficient, robust and high performance amplifiers in the DTV era.
Specification:
- Multistandard: ATSC (including ATSC3.O), ISDB-T, DTMB, DVB-T/T2, Analog, DAB.
- 2x ASI with Hitless switch, 2x IP Ethernet, 2x ETI/EDI + 1xSFP (optical/electrical), A/V for analog broadcasting.
- The most advanced manual, Automatic and Adaptive Linear and Non-Linear Pre-corrector.
- Fully frequency agile without need for any tuning or trimming.
- ON Board GNSS receiver (GPS, GLONASS, BEIDU, GALILEO).
- USB input to fast save/load configurations.
- Amplifier equipped with No. 3 Hot Pluggable power supplies.
- RF Pallets with independent carrier mount, no re-adjustment needed.
- Highest performances in terms of MER, BER and shoulders.
- Independent temperature controlled low-noise fans.
- Use of tools is reduced almost to zero including pallets replacement.
- Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts.
